Description
Maximum Fun, Minimal Maintenance is exactly what you get from the CLUTCH 160.9. With its low gravity center and hyper active suspension, you’ll dance down the trails! It gets the full factory treatment from Rockshox Ultimate suspension to Magura Gustav Pro brakes, giving you all the tools to hit the trails and have you smiling from ear to ear!
Specifications
Frame
Frame
Clutch, 6061 T4-T6 alloy, 160mm travel, custom integration of Moustache Batterie and Pinion MGU, internal cable routing, 12x148mm, Boost, 29"/27.5" Mullet wheel configuration
Suspension
Fork
RockShox, ZEB, Ultimate, DebonAir+ spring w/external rebound and HS/LS compression, Buttercups, 170mm travel, 15x110mm Boost, 44mm offset, mini-fender compatible
Shock
Rockshox, Vivid, Ultimate, 2 positions lever, rebound and compression adjustment, Moustache tune, 230-65mm, 160mm travel
Motor system
Motor
Pinion MGU, integrated 12 speed, 85Nm
Battery
Moustache 780Wh
Autonomy
110 km
Charger
FIT, 4.8Ah
Display
FIT, Master Node Display
Remote
FIT Remote Pure with control ring and function button
Transmission
Cassette
Gates, CDX Carbon Drive 39T
Chain
Gates, CDX belt, clean, smooth and resistant
Shifter
Pinion TE1 E-Trigger
Cranks
Pinion, alloy 160mm
Rear derailleur
Chainring
Gates, Carbon Drive 39T
Brakes
Front brake
Magura, Gustav Pro, hydraulic disc, 4 pistons
Rear brake
Magura, Gustav Pro, hydraulic disc, 4 pistons
Front rotor
Magura, MDR-S, 203mm, 2,5mm thickness
Rear rotor
Magura, MDR-S, 203mm, 2,5mm thickness
Wheels
Front hub
Moustache by Mavic, 28H, Centerlock, 15x110mm, thru axle
Rear hub
Moustache by Mavic, 28H, ID360, 12x148mm, thru axle
Front rim
Mavic, XM1030, Maxtal, welded, 28 holes, 29", internal width 30mm, mounted with Tubeless valves & flap, brass nuts with locking "Blue Nylon" insert
Rear rim
Mavic, XM1030, Maxtal, welded, 28 holes, 27,5", internal width 30mm, mounted with Tubeless valves & flap, brass nuts with locking "Blue Nylon" insert
Tires
Maxxis, Assegai, 29x2.50, foldable, 3C MaxxGrip / DD / TR (Tubeless Ready)
Cockpit
Saddle
Fizik, Terra Aidon X5
Seatpost
KS, Lev Integra, dropper-post w/ Shimano remote lever, 31.6mm, 150mm
Seat clamp
Moustache, alloy, 38.6mm, integrated light
Handlebar
Moustache, alloy, 780mm, 35mm, 30mm rise, 9° backsweep, 5° upsweep
Stem
Moustache, alloy, 3D forged, 40mm
Headset
Acros, AZF-725, sealed bearings, internal routing, integrated multi-tool
Grips
SB3, Hornet
Equipment
Front light
Front light cable pre-installed in the frame, Supernova compatible plug
Pedals
Alloy platform with reflectors
Horn
Spanninga Minibell Black
Features
Size
S (1.55 – 1.72m)
M (1.65 – 1.80m)
L (1.75 – 1.90m)
XL (1.85 – 2.03m)
Colour

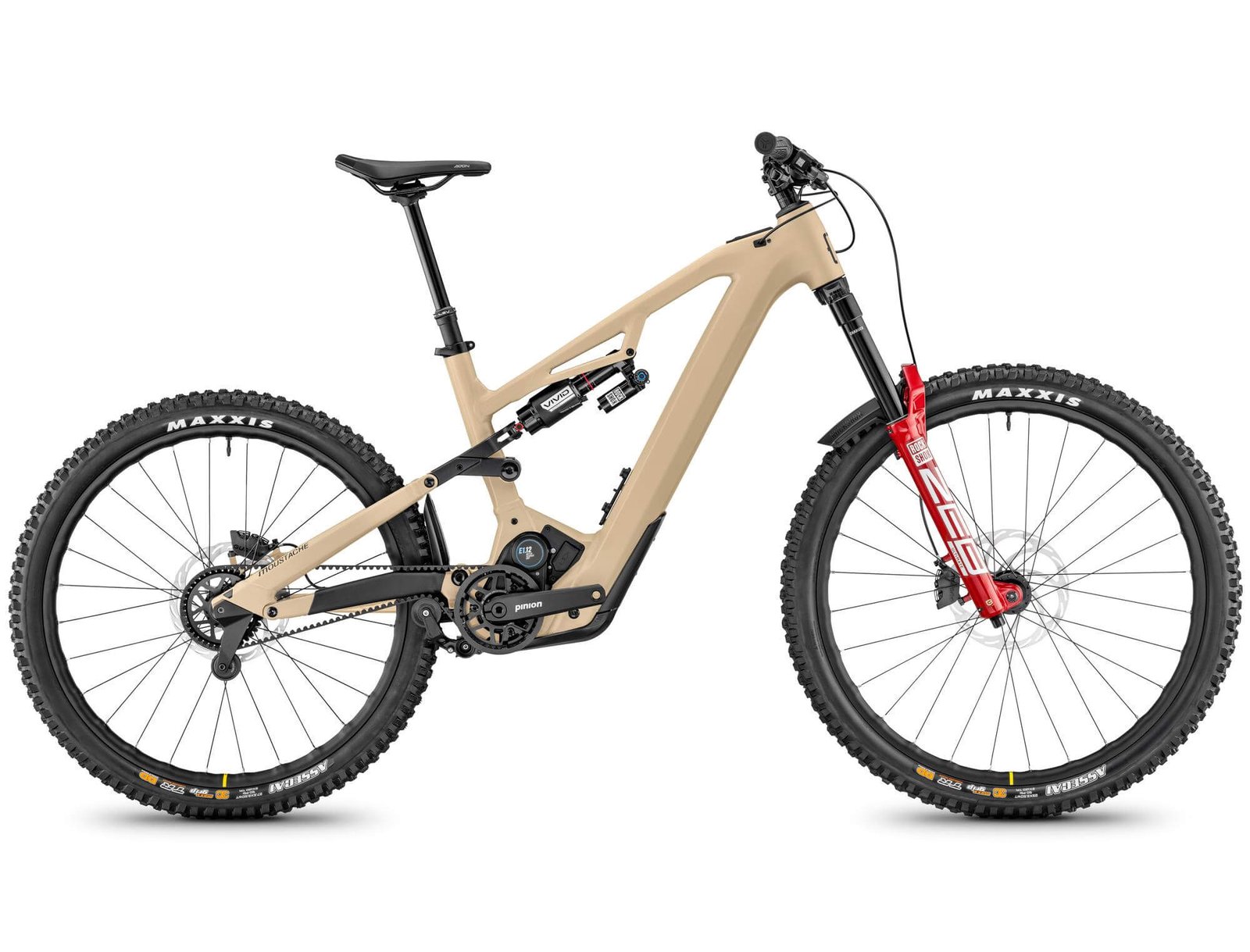

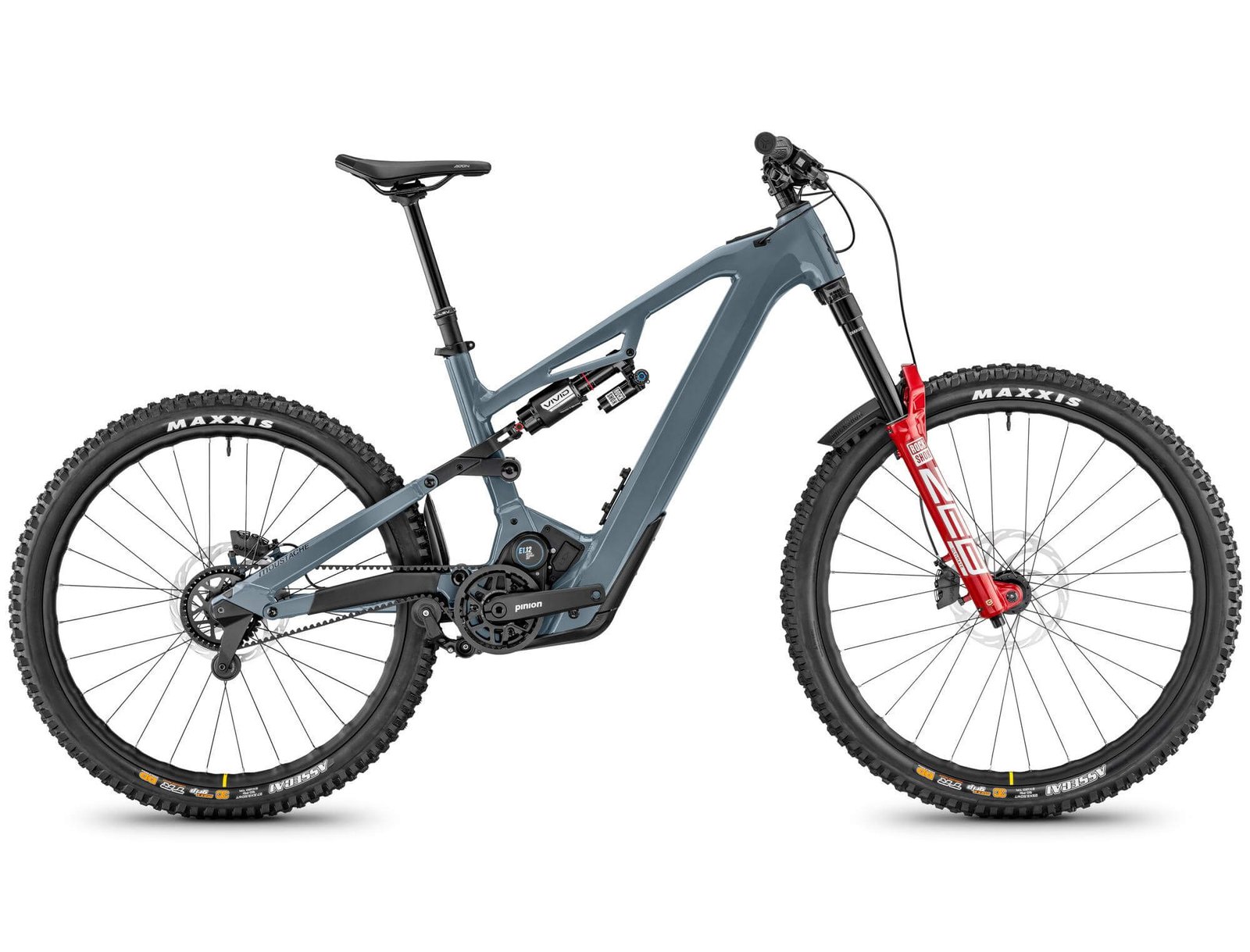

Slab Grey, Dune
Weight
27.4 kg
GVWR
150 kg
Warranty
5 years frame and fork Moustache Bikes - 2 years motor, battery
* Prices, models, and specifications are subject to change without notice.
