Description

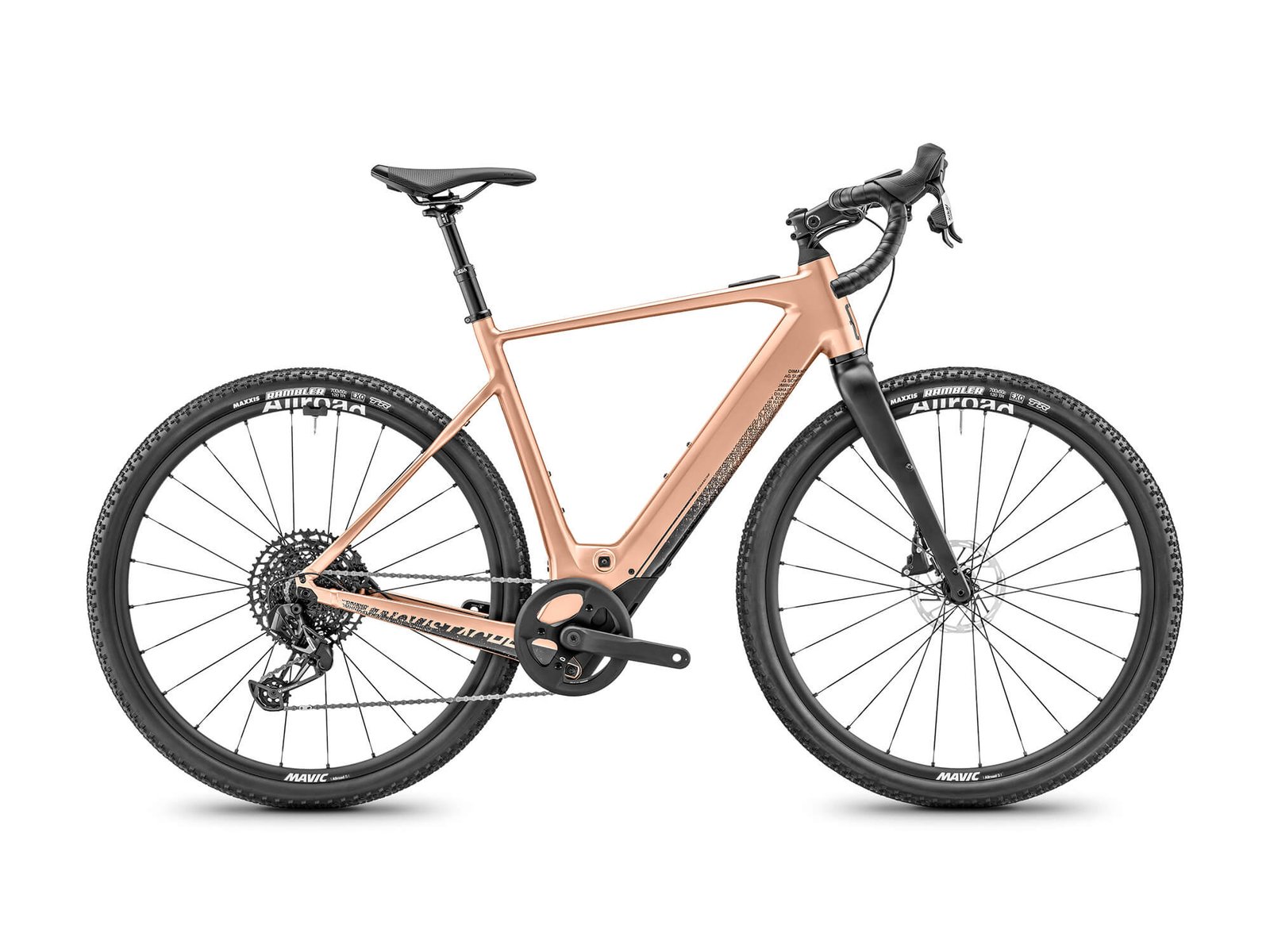

With its top-of-the-range frame, full carbon fork, high-performance Mavic wheels and Sram APEX AXS electric drivetrain, the Dimanche 29 Gravel 6 is ready to take on the most demanding roads and trails! Ride your favourite tracks, then relaunch and attack… or just take the time to explore or cruise around on our Dimanche 29 Gravel 6; it can do it all, with a smile!
Specifications
Frame
Frame
Dimanche 29, 6061 T4-T6 alloy, variable thickness hydroformed tubes, CompactTube integration and internal cable routing
Suspension
Fork
Dimanche 29, full carbon, tapered steerer tube 1"1/8-1"1/2 - FlatMount 180mm direct brake mount - 12x100mm Axle - 50mm offset - For tires in 700x50 - Mounts for mud-guard and luggage racks
Motor system
Motor
Bosch, Performance Line SX, Smart System, 55-60Nm
Battery
Bosch, CompactTube 400Wh, Smart System
Autonomy
90 km
Charger
Bosch, 2Ah
Display
Bosch, Kiox 300, Smart System
Remote
Bosch, System Controller and Mini Remote, Smart System
Transmission
Cassette
SRAM, Eagle, PG-1230 12-speed, 11-50T
Chain
Sram, SX Eagle, 12-speed, 120 links
Cranks
FSA, forged aluminum, 170mm
Rear derailleur
SRAM, X1 AXS, 12-speed, electronic
Chainring
SRAM, Narrow-Wide, 44 teeth, chainguard
Brakes
Front brake
SRAM, Apex AXS, hydraulic disc
Rear brake
SRAM, Apex AXS, hydraulic disc
Front rotor
SRAM, Paceline, 160mm
Rear rotor
SRAM, Paceline, 160mm
Wheels
Front hub
Mavic, 24H, 12x100mm, thru axle
Rear hub
Mavic, 24H, ID360, 12x142mm, thru axle
Front rim
Mavic, Allroad S, alloy, 24H, 700c, 25mm width, Tubeless compatible
Rear rim
Mavic, Allroad S, alloy, 24H, 700c, 25mm width, Tubeless compatible
Tires
Maxxis, Rambler, 700x50C, 120TPI
Cockpit
Saddle
Selle Royal, VIVO
Seatpost
EXA, 860i, suspended dropper-post w/remote lever, 31.6mm, 75mm
Seat clamp
Moustache, alloy, 34.9mm
Handlebar
Moustache, alloy, rise 10, drop 129, reach 65, flare 16°, 440mm
Stem
Moustache, aluminum, suspended 10-20mm travel, 90mm
Headset
Acros, AZF-725, sealed bearings, internal routing
Grips
Moustache bar tape, gel 2.5mm
Equipment
Pedals
Alloy platform with reflectors
Front carrier
Optional extra: Moustache, Alloy, compatible with QL3 bags and accessories
Features
Size
S (1.53 – 1.68m)
M (1.66 – 1.81m)
L (1.79 – 1.94m)
XL (1.92 – 2.07m)
Colour
Light Copper
Weight
17.6 kg
GVWR
120 kg
Warranty
5 years frame and fork Moustache Bikes - 2 years motor, battery
* Prices, models, and specifications are subject to change without notice.
