Description

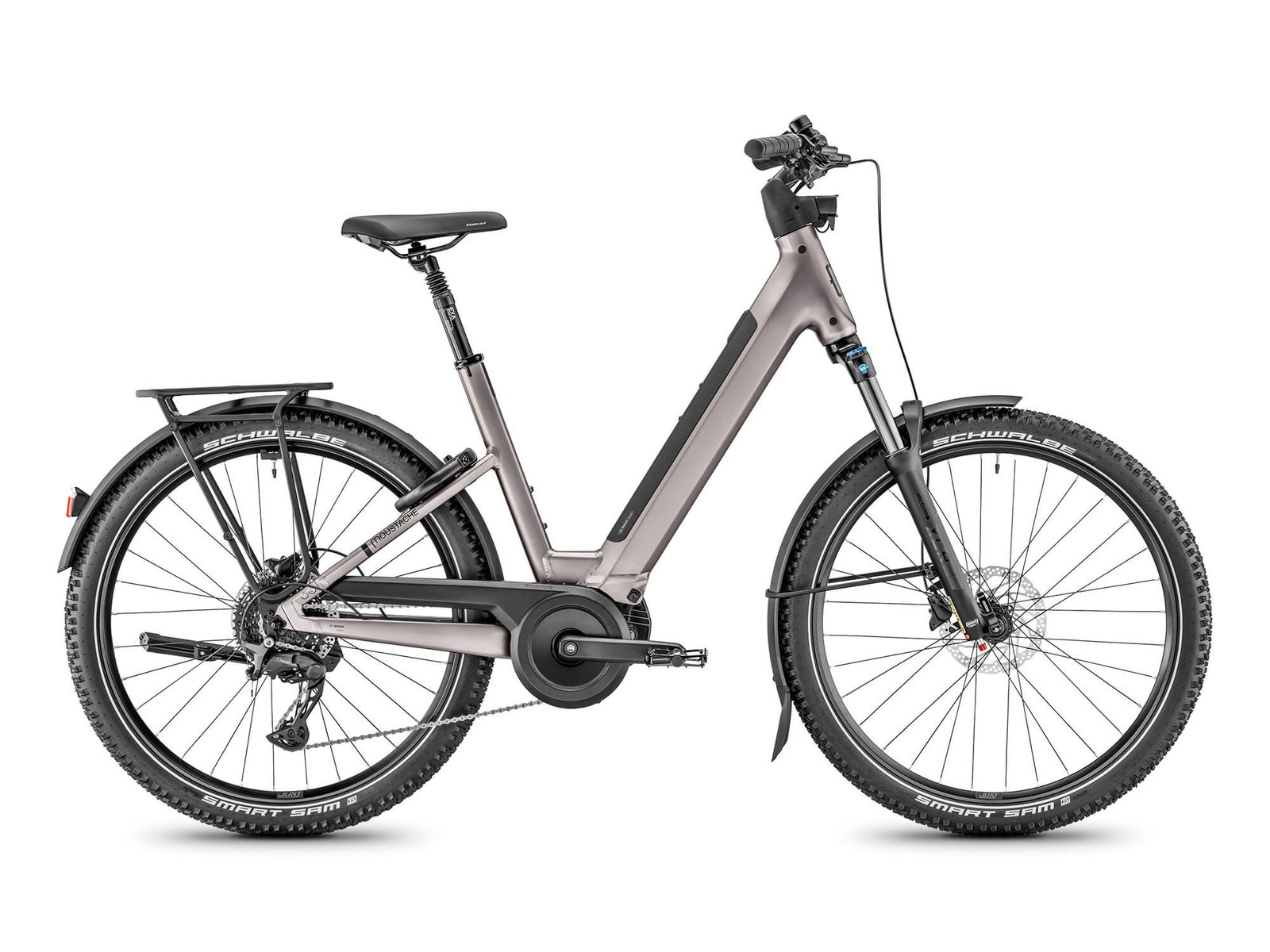

Equally at ease on country paths as in the urban jungle, and now even more powerful with the new Bosch Performance Line PX motor, the Xroad 4 is ready to take you anywhere!
Product Details and Specifications
User Manual
Specifications
Frame
Frame
Xroad Open, 6061 T4-T6 alloy, hydroformed tubes and extruded triple cavity tubes for optimal stiffness, Bosch PowerTube battery integration, integrated cable routing
Suspension
Fork
SR Suntour, XCR 34, lockout function, 120mm travel
Motor system
Motor
Bosch, Performance Line PX, Smart System, 85-90 Nm
Battery
Bosch, PowerTube 800Wh, Smart System
Autonomy
182 km
Charger
Bosch, 4Ah
Remote
Bosch, Purion 200, Smart System
Transmission
Cassette
Shimano, CUES, CS-LG300 10-speed, 11-39T
Chain
Shimano, CN-LG500, 120 links
Shifter
Shimano, CUES, SL-U6000-10R, 10-speed
Cranks
Stronglight, aluminum, 170mm, ISI
Rear derailleur
Shimano, CUES, RD-U6020, 10-speed
Chainring
Narrow-Wide, 38 teeth
Brakes
Front brake
Shimano, MT200, hydraulic disc
Rear brake
Shimano, MT200, hydraulic disc
Front rotor
Shimano, 180mm
Rear rotor
Shimano, 180mm
Wheels
Front hub
Shimano, 32H, 15x110mm, thru axle
Rear hub
Shimano, 32H, 9x100mm, QR (Quick Release)
Front rim
Alloy, 32 holes, 27.5", internal width 27 mm
Rear rim
Alloy, 32 holes, 27.5", internal width 27 mm
Tires
Schwalbe, Smart Sam, 27.5x2.35, reflective
Cockpit
Saddle
Selle Royal, Essenza + moderate
Seatpost
Suspension, alloy, 31.6mm, 350mm, 40mm travel
Seat clamp
Moustache, alloy, 34.9mm
Handlebar
Moustache, ergonomic, alloy, 660mm, 30° backsweep
Stem
Moustache, alloy, adjustable, 110mm
Headset
Acros, AZF-699, sealed bearings, internal routing, blocklock
Grips
SB3, Ergonomic
Equipment
Front light
AXA, NXT, 80 lux, powered by main battery
Rear light
Spanninga, Presto2Guard, powered by main battery
Lock
ABUS, 4650SL, same key for frame lock & battery lock
Kickstand
Moustache, adjustable
Mudguard
Moustache, alloy, double wall design, w/alloy stays
Pedals
Alloy platform with reflectors
Rear carrier
Moustache, alloy, removable QL3 lateral fixation, MIK HD platform. Moustache protect option
Horn
Spanninga Minibell Black
Features
Size
S (1.49 – 1.61m)
M (1.59 – 1.76m)
L (1.74 – 1.92m)
XL (1.90 – 2.05m)
Colour
Titanium
Weight
27.2 kg
GVWR
160 kg
Warranty
5 years frame and fork Moustache Bikes - 2 years motor, battery
* Prices, models, and specifications are subject to change without notice.
