Description
Featuring the full suspension TechnoloJ frame with enhanced comfort, stability and versatility.

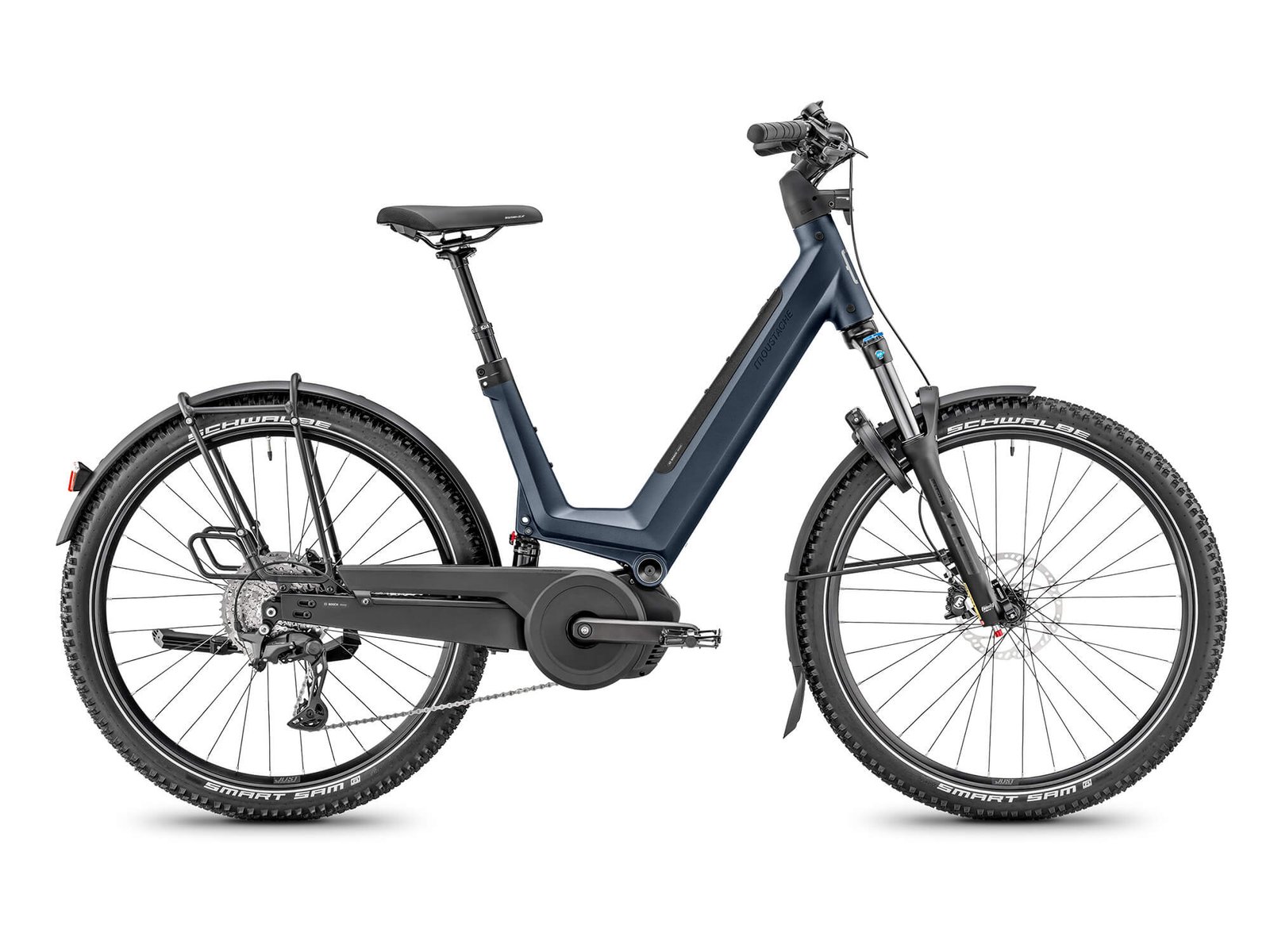

King of versatility and the most high-end version of the family, the Xroad 6 FS is equipped with the benchmark in sporty motors: the Bosch Performance Line CX Smart System. It raises the bar in terms of equipment: Magura brakes, SR Suntour XCR34 fork, and a telescopic suspension seatpost — the Xroad 6 is a bike without compromise!
Product Details and Specifications
User Manual
Specifications
Frame
Frame
Xroad FS, aluminum, one-piece gravity cast, low stepover, increase rigidity thanks to internal ribs, unified rear swingarm, discreet internal cable routing, integrated battery and drive unit
Suspension
Fork
SR Suntour, XCR 34, lockout function, 120mm travel
Shock
Moustache, Magic Grip Control 115, specific Air Shock with 2-position platform and dynamic control of rebound, build-in 165x38mm, 115mm travel
Motor system
Motor
Bosch, Performance Line CX, Smart System, 85-100 Nm
Battery
Bosch, PowerTube 600Wh, Smart System
Autonomy
135 km
Charger
Bosch, 4Ah
Display
Bosch, Kiox 500, Smart System
Remote
Bosch, LED remote Bluetooth
Transmission
Cassette
Shimano, CUES, CS-LG400 11-speed, 11-45T
Chain
Shimano, LG500, 130 links
Shifter
Shimano, CUES, SL-U6000-11R, 11-speed
Cranks
Stronglight, aluminum, 170mm, ISI
Rear derailleur
Shimano, CUES, RD-U6020-11, 11-speed
Chainring
Narrow-Wide, 38 teeth
Brakes
Front brake
Magura, MT Thirty, hydraulic disc, 4 pistons
Rear brake
Magura, MT Thirty, hydraulic disc, 2 pistons
Front rotor
Magura, MDR-C, 180mm
Rear rotor
Magura, MDR-C, 180mm
Wheels
Front hub
Shimano, 32H, 15x110mm, thru axle
Rear hub
Shimano, 32H, 15x110mm, thru axle
Front rim
Alloy, 32 holes, 27.5", internal width 27 mm
Rear rim
Alloy, 32 holes, 27.5", internal width 27 mm
Tires
Schwalbe, Smart Sam, 27.5x2.35, reflective
Cockpit
Saddle
Selle Royal, Essenza + moderate
Seatpost
EXA, 900i, dropper-post w/remote lever, 31.6mm, 150mm
Seat clamp
Moustache, alloy, 34.9mm
Handlebar
Moustache, ergonomic, alloy, 660mm, 30° backsweep
Stem
Moustache, alloy, adjustable, 110mm
Headset
Acros, AZF-699, sealed bearings, internal routing, blocklock
Grips
SB3, Ergonomic
Equipment
Front light
AXA, NXT, 80 lux, powered by main battery
Rear light
Spanninga, Presto2Guard, powered by main battery
Lock
Battery lock ABUS, Xplus, One-Key option. Frame lock AXA Block XXL
Kickstand
Moustache, adjustable
Mudguard
Moustache, alloy, double wall design, w/alloy stays
Pedals
Alloy platform with reflectors
Rear carrier
Moustache, alloy, light, removable QL3 lateral fixation. MIK platform option
Horn
Spanninga Minibell Black
Features
Size
S (1.55 – 1.70m)
M (1.68 – 1.83m)
L (1.80 – 1.95m)
Colour
Marine Blue
Weight
27.4 kg
GVWR
160 kg
Warranty
5 years frame and fork Moustache Bikes - 2 years motor, battery
* Prices, models, and specifications are subject to change without notice.
