Description

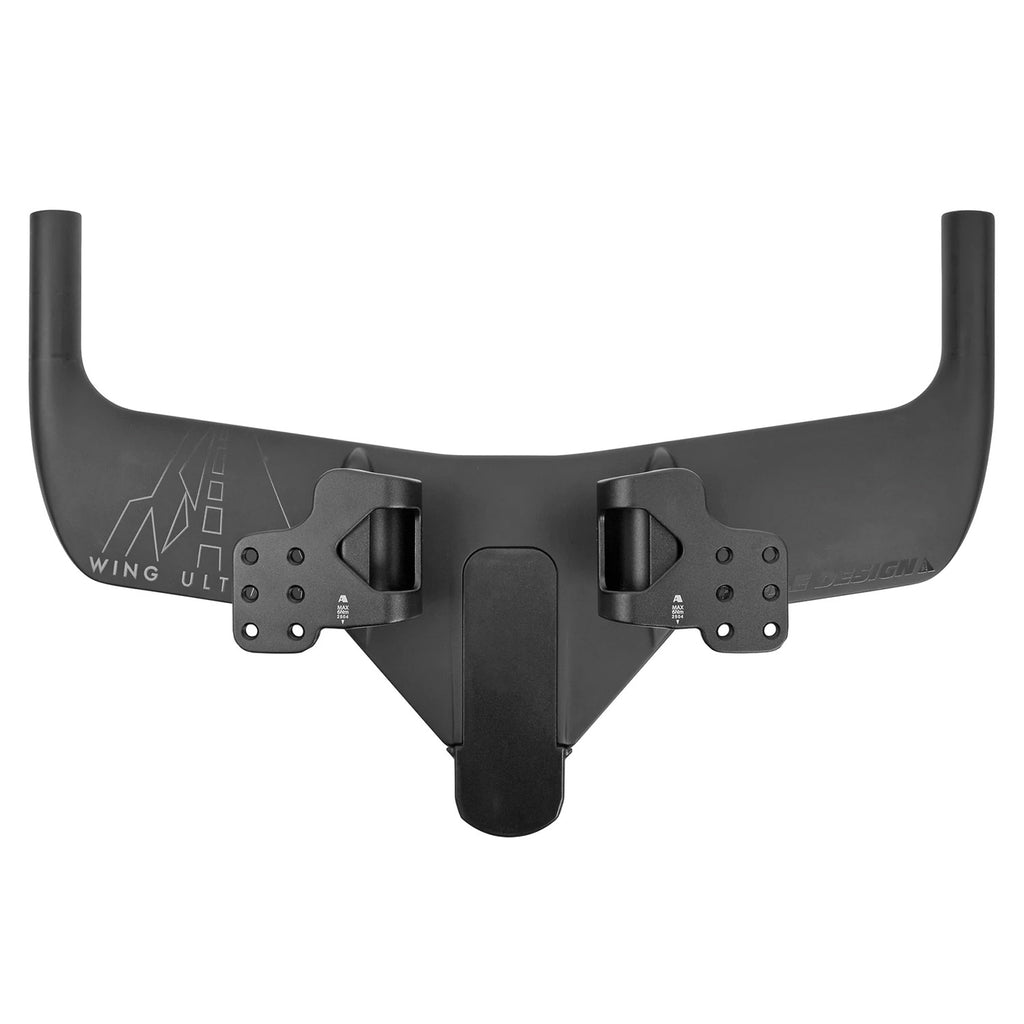

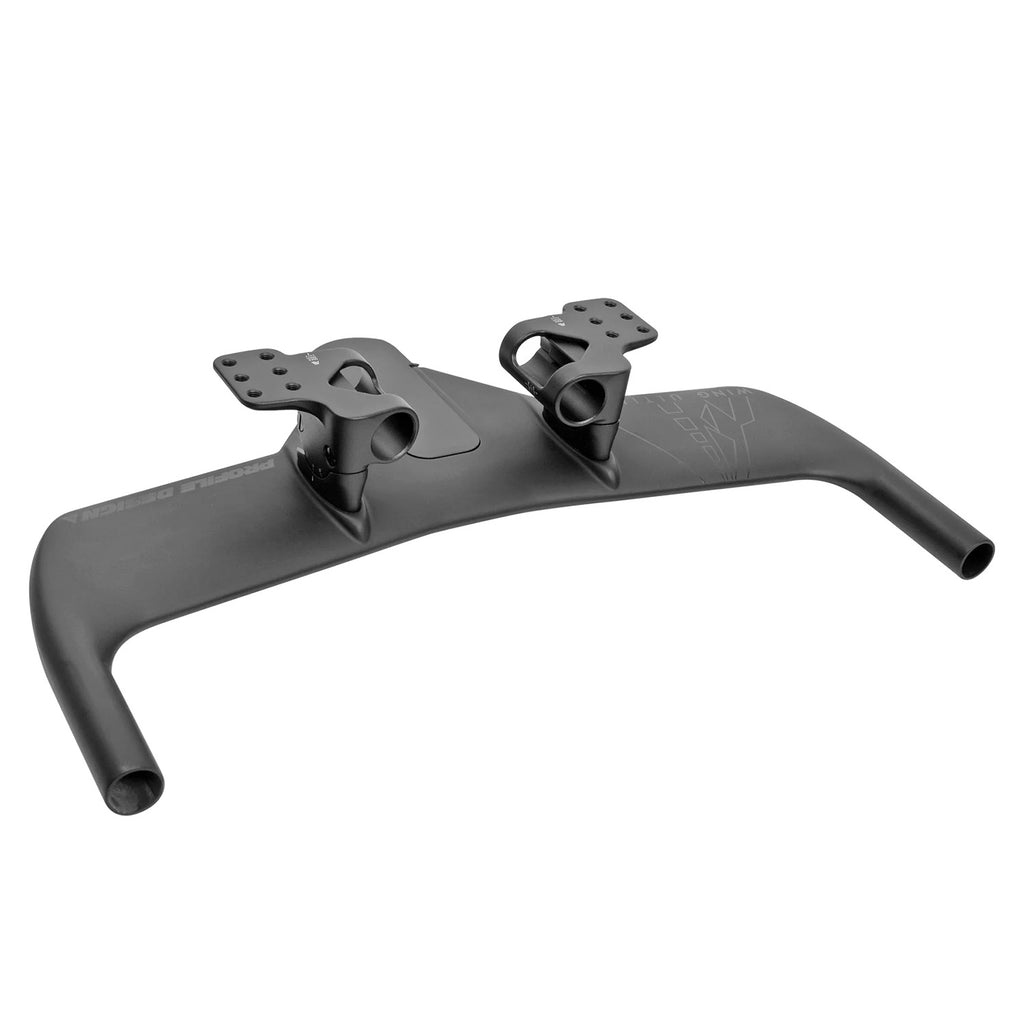

The Wing Ultimate S offers full carbon construction and a variety of cable routing options. The Wing Ultimate S has been designed to maximize aerodynamics within the updated UCI rules, offering a measurable improvement compared to a 3:1 design. It also drops a significant amount of weight compared to the Aeria Ultimate.
This bar is perfect for riders who wish to achieve lower positions than are possible with standard aerobar designs. Unlike other low stack bars it allows fine-tuning of the stack height so the rider is not limited to only one arm pad height. With the Race armrests fitted it is tailored towards riders who intend to be low and narrow to punch the smallest possible hole through the wind.
Key Features
- Seamlessly integrates top tube and headset cable routing for maximum versatility
- Independent adjustment of all components for precise tuning
- Effortless usability and proven reliability
- Native compatibility with A3 risers, and with A2 risers via an adaptor
- Extended reach of 30mm and an additional 15° of tilt for greater flexibility
Specifications
- Effective stem length: 89.6mm
- Effective bar reach: 142.4mm
- Basebar Width: 420mm (Center-to-Center)
- Steerer Tube Diameter: 1-1/8in (28.6mm)
- Stack of Bracket Mount: 44.3mm
- Stem Steerer Tube Stack Height: 32.5mm
- Stack of Grips: 0.5mm
- Internal Cable Routing: Yes
- Di2 Compatible: Yes
- Bracket: A3 Bracket Kit
- Armrest: Not Included
- Extensions: Not Included
- Extension Clamp Diameter: 22.2mm

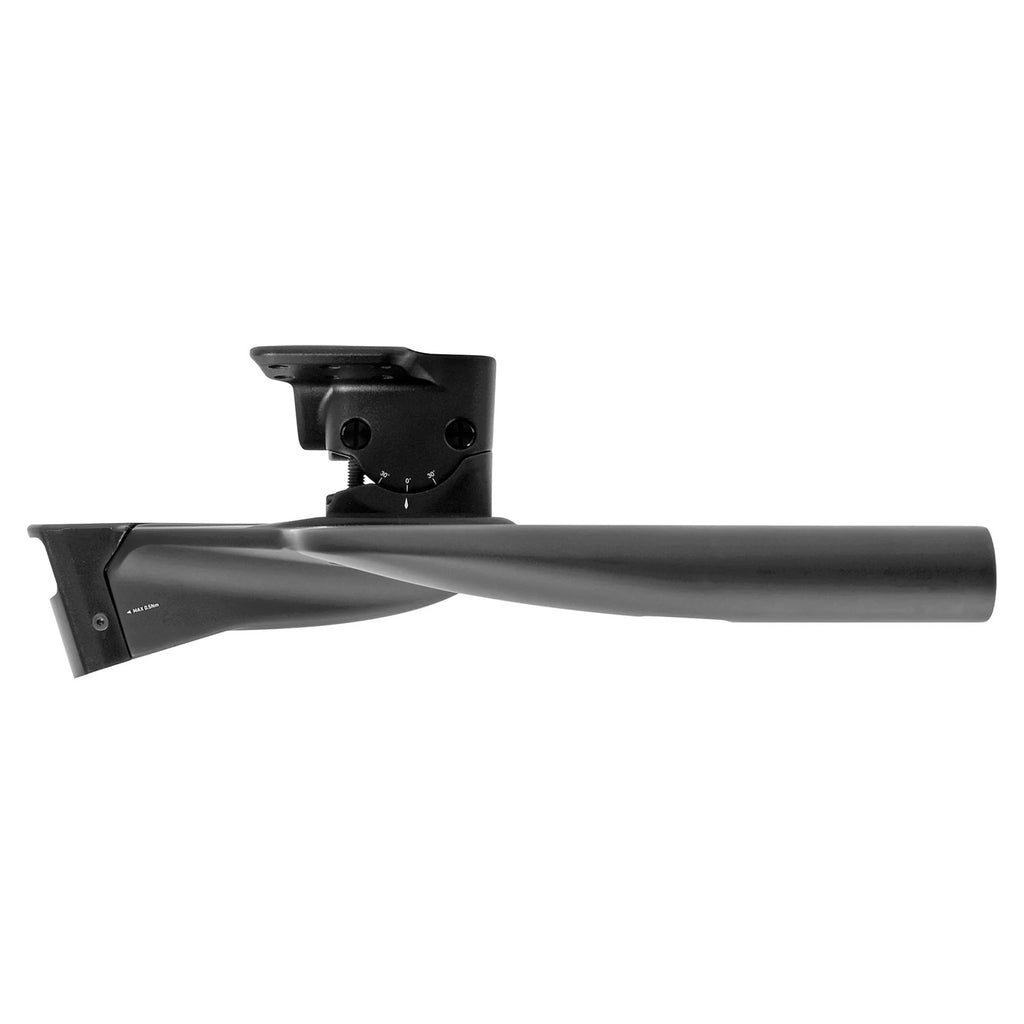

- Bracket Tilt Adjustment: 0-30°
- ASC Pro Compatible: Yes
- Pursuit OD/ID: 24 / 19.6mm
- Construction: Carbon
- Color: Matte Black
- Weight: 390g (base bar)
